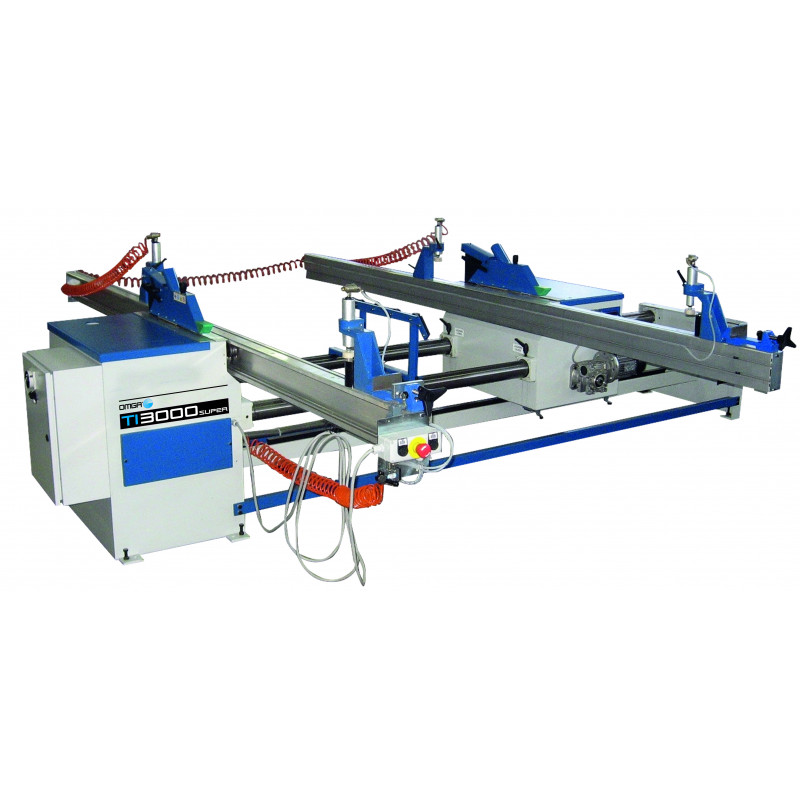

Double Squaring Machine. 400 mm Saw Blades, 125mm Scoring Blades. Cutting capacity 3000 x 3000 mm

More details

More info

The left hand head is fix and the right hand one is positioned by a handwheel, the position being read on a tape ruler, or on a digital Read Out as an option. Both saw blades are tiltable up to 45° for belvel cuts. At the end of the cut stroke a pneumatic system opens up the saw units to prevent any chipping during back stroke. Pneumatic clamps or vacuum cups are also available as an option. The movable head is also available with motorised positioning.

Download literature

Data sheet

Max. distance between saws 3050 mm 2550 mm
Maximum thickness at 90° 110 mm 110 mm
Maximum thickness at 45° 78 mm 78 mm
Motor power 2 x 4 kw 2 x 4 kw
Saw bore 30 mm 30 mm
Arbor speed RPM 3000 3000
Dust Chute 2 x 120 mm 2 x 120 mm
Max. cutting width 3000 mm 2500 mm
Saw blade diameter 400 mm 400 mm
Scoring blade diameter 125 mm 125 mm
Scoring blade bore 20 mm 20 mm
Scoring blade speed 6300 RPM 6300 RPM
Crated Dimensions 460 x 140 x 110 cm 405 x 140 x 110 cm
