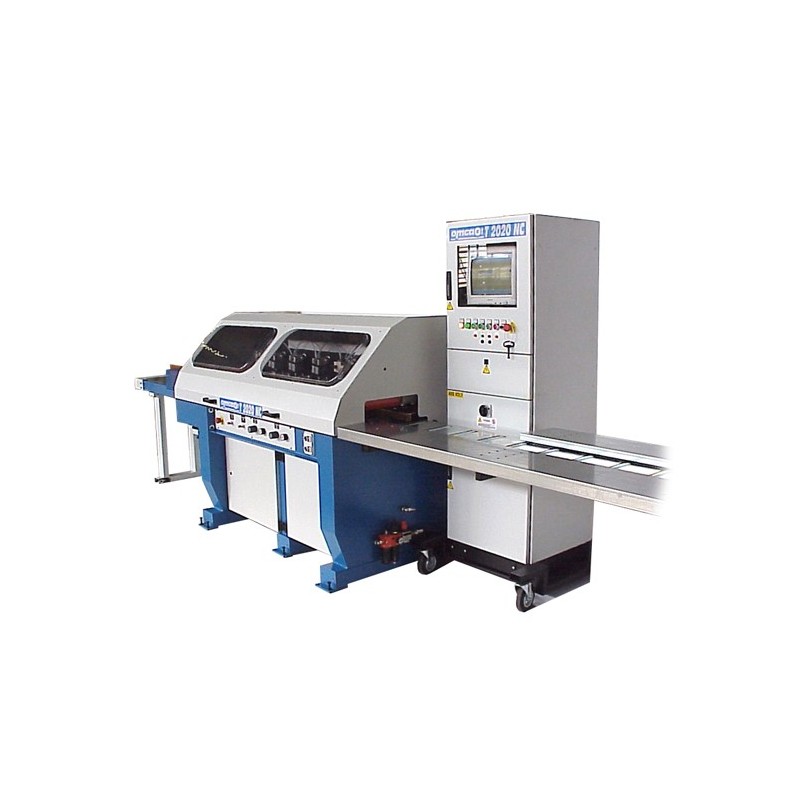

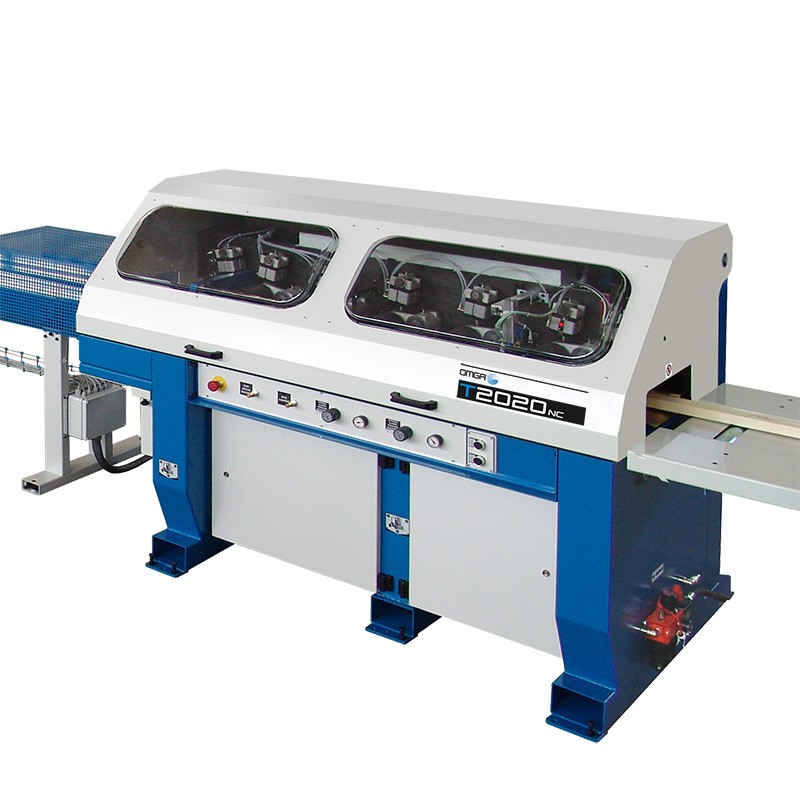

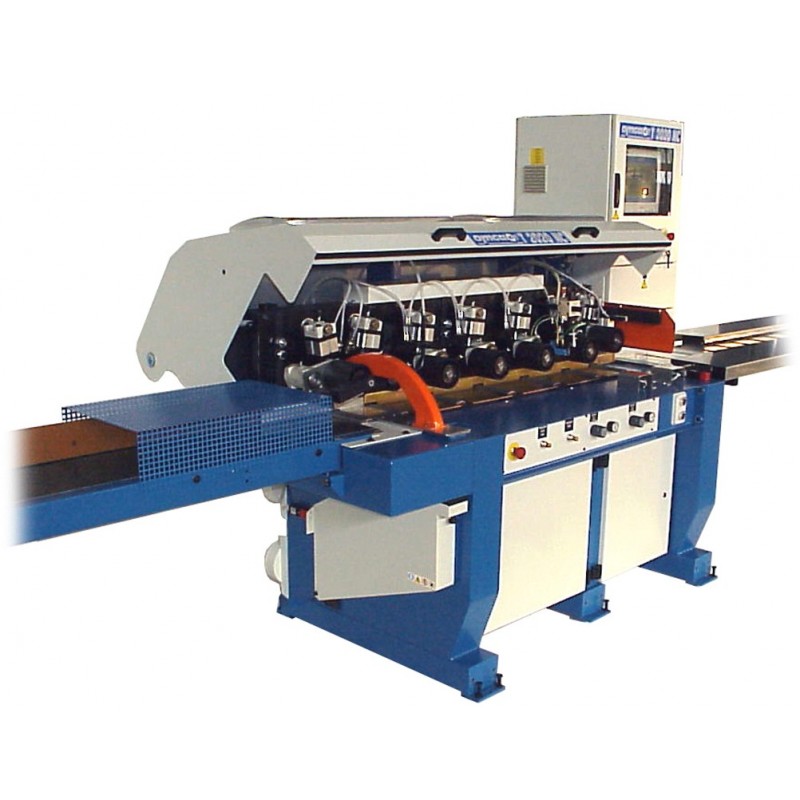

T 2020 NC

High Speed Automatic Cut-off Saw programmable for optimized cutting of wood stock and defect removal

More details

More info

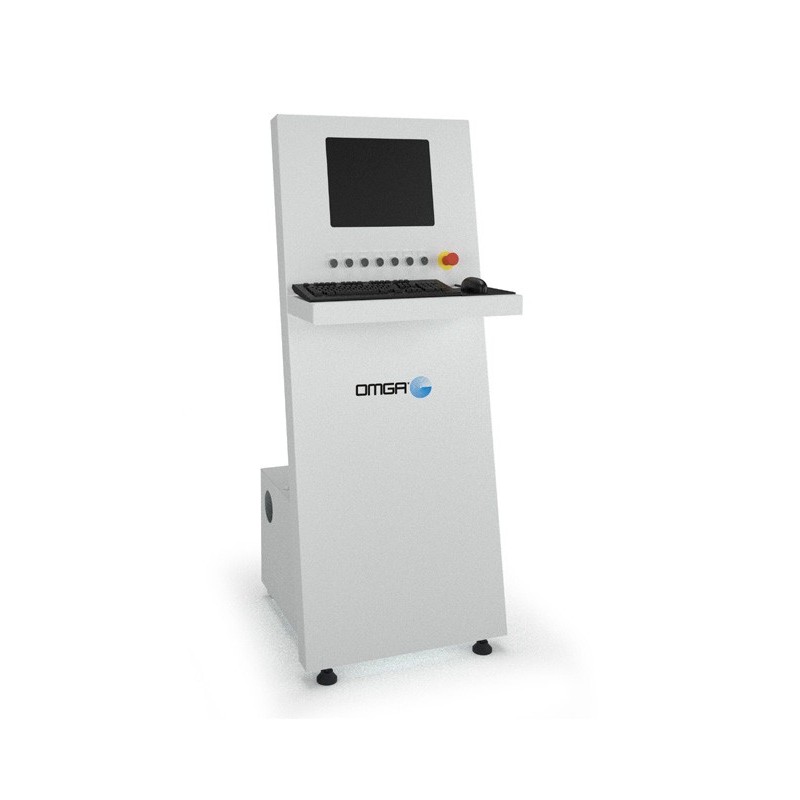

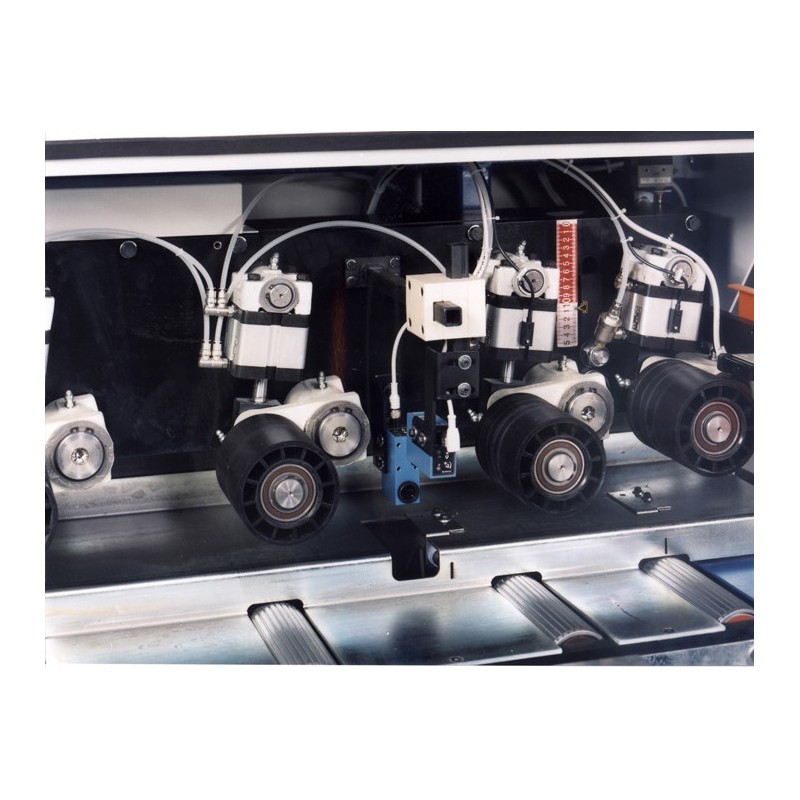

Particularly suitable for high production requirements given its very high maximum feed speed of 240 m/min. The set of 7 feeding rollers with corresponding top pressure rollers are able to compensate for dimensional variations of rough mill stock. The machine is equipped with a Windows based PC. The software is capable of performing eleven work cycle programs. Cutting lists can be input directly from the PC keypad, USB port, with direct serial connection to a remote PC or directly through the network. The software is complete with diagnostic and can also provide the following information: - Stock, in cubic metersrequired to produce the number of pieces in each list. - Number of pieces produced of each length. - Amount of stock in cubic meters divided into: first, second, third grade and waste - Cubic meters required to produce remaining parts. - Yield as a percentage of the total - The system can perform simulated cutting to test the result before processing the wood and allowing the user to decide about the parameter setting for the required production AVAILABLE OPTIONS: - Infeed Roller Tables. - Width Scanner. - Two Sided Marking Stations. - 2nd horizontal reading Camera. (for up to 5 grades). - Single sided CNC Workpiece Sorter with kickers. - Motorized loading systems - In-line high resolution Ink-jet printers.

Download literature

T2020-T2030_GB_00 low

Download (950.25k)

Data sheet

T 2020 NC T 2030 NC
Max. piece thickness 120 mm 120 mm
Max. piece width 300 mm 300 mm
Min. infeed length 600 mm 600 mm
Max. feed Speed 240 m/min 240 m/min
Saw blade motor power 5.5 kW – opt. 7.5 kW 5.5 kW – opt. 7.5 kW
Feed motor power 35 Nm 35 Nm
Max. Acceleration 20 m/sec. 20 m/sec.
Cutting Speed 0.2 - 1 sec. 0.2 - 1 sec.
Average number of cuts 80 - 90 / min. 80 - 90 / min
